What Are Garage Door Safety Sensors and What Do They Do?
Garage door safety sensors are a pair of small electronic devices mounted near the base of your garage door tracks that detect obstructions and automatically stop or reverse the door before it can strike a person, pet, or object. Federal law has required them on all new residential garage door openers since 1993, making them one of the most important safety features on your home.

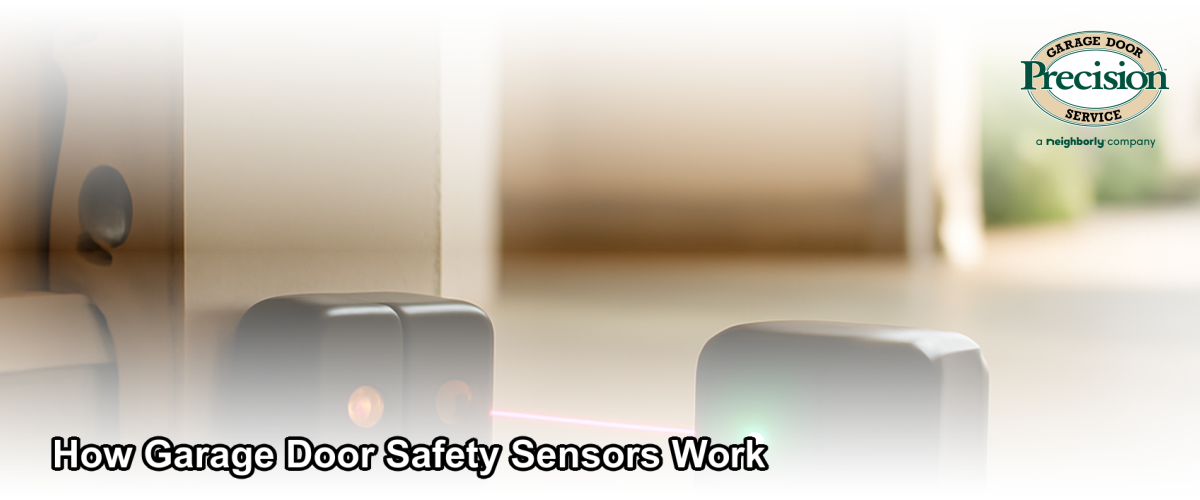

The sensors work as a matched pair — one sends a continuous invisible infrared beam across the door opening, and the other receives it. As long as that beam is unbroken, the door can close normally. The moment something interrupts the beam, the door immediately halts or reverses direction. At Precision Garage Door Ventura, our IDEA Certified Residential Technicians inspect sensor alignment and function on every service call — because a sensor that looks fine can still be failing silently.
How Do Garage Door Photo Eye Sensors Actually Work?
Each sensor in the pair has a distinct role: the sending unit emits a continuous infrared beam at roughly 6 inches above the ground, and the receiving unit monitors that beam for any interruption. When the beam is blocked — even for a fraction of a second — the opener’s control board receives a signal to stop the door and reverse its travel.
The sensors are intentionally mounted low to the ground to catch the most common hazards: a child crawling through the opening, a pet, a bicycle, or a box left too close to the door. Mounting height is not adjustable by design — it is set to the federal standard. What is adjustable, and what drifts over time, is the precise aim of each sensor lens. Even a few degrees of misalignment is enough to break the signal path and cause the door to behave erratically.
Why Is My Garage Door Reversing for No Reason?
If your garage door reverses before it reaches the ground or refuses to close at all, a misaligned or obstructed safety sensor is the most common cause — and it is almost always fixable without replacing any parts. Ventura’s coastal climate introduces a specific wrinkle here: morning marine layer and salt-air humidity can fog or corrode sensor lenses faster than in drier inland areas, causing intermittent signal loss that homeowners often mistake for a wiring or opener problem.
Check the indicator lights on each sensor first. A solid green light on the receiving sensor means the beam is aligned and clean. An amber or blinking light means the beam is interrupted or the sensors are out of alignment. Common culprits include:
- Dirt, spider webs, or salt residue on the lens
- A sensor bracket that was bumped out of position
- Bright direct sunlight hitting the receiving sensor (common in west-facing Ventura garages during late afternoon)
- A kinked or damaged sensor wire
Wiping the lenses with a dry cloth and gently realigning the sensor brackets by hand resolves the issue in many cases. If the blinking continues after cleaning and realignment, the sensor unit itself may need replacement — a straightforward repair our team handles during a standard service visit.
How Much Does It Cost to Replace Garage Door Safety Sensors in Ventura, CA?
Sensor replacement at a professional level in the Ventura area typically runs $85 to $150 for the parts and labor combined, depending on the opener brand and whether one or both units need to be swapped. OEM sensor pairs from major brands like LiftMaster or Chamberlain generally cost $20 to $50 at the parts level — the remainder covers the technician’s time to install, align, and test the new units to confirm the door reverses correctly.
If the sensors themselves test fine but the door still misbehaves, the diagnostic may point to the opener’s logic board or wiring — a different repair with a different cost profile. Our IDEA Certified Residential Technicians at Precision Garage Door Ventura diagnose before recommending parts, so you never pay for a replacement that wasn’t the root cause. See our full guide on garage door opener troubleshooting for a breakdown of when sensor repair versus opener replacement makes more financial sense.
What Is Included in a Sensor Service Call — and What Costs Extra?
A standard sensor service call from Precision Garage Door Ventura includes a diagnostic assessment of both sensor units, lens cleaning, bracket realignment, and a full reversal test after any adjustments. If replacement parts are needed, those are quoted separately and approved before any work begins — no surprise line items.
What can add to the total: if the sensor wiring has been chewed by rodents (not uncommon in Ventura County’s foothill and canyon-adjacent neighborhoods), rewiring the sensor run adds $40 to $80 depending on the length of the run. A damaged sensor mounting bracket — usually from a car bumping the track — may add a small parts cost as well.
Can I Bypass or Disable My Garage Door Safety Sensors?
You can physically defeat garage door safety sensors, but doing so removes a federally mandated safety feature and creates serious liability — and is something Precision Garage Door Ventura strongly advises against. Some openers have a manual override mode intended for situations where a sensor has failed and you need temporary use of the door, but that mode is meant as a short-term bridge to a repair, not a permanent solution.
If your door only closes when you hold the wall button continuously, that is the opener’s built-in fail-safe telling you a sensor fault exists. Do not interpret it as the door working normally — it is working in degraded mode. Schedule a sensor inspection as soon as possible, especially in households with children or pets.
How Often Should Garage Door Safety Sensors Be Tested and Maintained?
The U.S. Consumer Product Safety Commission recommends testing your garage door’s auto-reverse function — including the sensor beam — once a month. The test takes under a minute: place a flat object like a 2×4 board flat on the ground in the door’s path and activate the close cycle. The door should reverse immediately upon contact with the board. If it does not, the mechanical reversal system (separate from the sensors) also needs attention.
For the sensors specifically, a monthly wipe of both lenses with a soft dry cloth keeps salt-air residue from accumulating — a real factor in coastal Ventura. Once a year, have an IDEA Certified technician verify sensor alignment with a calibration check, inspect the wiring for corrosion, and confirm the bracket mounts are tight. As covered in our garage door maintenance guide, annual professional tuning extends the life of every component, not just the sensors.
What Happens If Garage Door Safety Sensors Fail Completely?
If both sensor units fail simultaneously, most modern openers will refuse to run the door in automatic mode at all — this is intentional. The opener interprets the loss of the sensor signal as a fault condition and locks out the close function to prevent the door from operating without safety protection. A single failed sensor may allow the door to close in override mode only, requiring the wall button to be held down continuously.
Complete sensor failure is relatively rare — more often, one unit fails while the other functions. Either way, operating a residential garage door without functioning sensors is not a safe long-term configuration, and most opener warranties are voided when safety systems are bypassed. Precision Garage Door Ventura carries replacement sensors compatible with all major opener brands and can typically complete a same-visit repair for Ventura County customers.
This guide was prepared by Precision Garage Door Ventura’s IDEA Certified Residential Technicians, serving Ventura, CA and the surrounding Ventura County communities.
Frequently Asked Questions
Why does my garage door go back up before it closes?
The most common cause is a misaligned or dirty safety sensor. The infrared beam between the two sensors is being interrupted — either by debris on the lens, a knocked-out bracket, or direct sunlight hitting the receiver. Clean the lenses and check that both indicator lights are solid before calling a technician.
How do I know if my garage door sensors are working?
Check the indicator lights: the sending sensor should glow amber and the receiving sensor should glow solid green when properly aligned and unobstructed. You can also test function by placing a 2×4 flat on the ground in the door’s path — the door must reverse on contact, not crush the board.
How much does it cost to replace garage door sensors in Ventura, CA?
Professional sensor replacement in the Ventura area typically costs between $85 and $150, covering both parts and labor. If the wiring is also damaged, rewiring adds roughly $40 to $80 to that total.
Can bright sunlight interfere with garage door sensors?
Yes. Direct sunlight hitting the receiving sensor can overwhelm its photodetector and mimic a blocked beam, causing the door to refuse to close. This is especially common in west-facing Ventura garages during late afternoon. Repositioning the sensor hood or adding a shade over the receiver usually resolves it.
Is it safe to bypass garage door safety sensors temporarily?
Most openers allow a temporary override by holding the wall button continuously, which is designed only as a short-term measure when a sensor has failed. Permanently bypassing sensors removes a federally required safety feature and is strongly discouraged — especially in homes with children or pets. Repair or replace the sensors promptly.
